ComCtl32.DLL Animation Control Class

A simple to use class for adding animations to your project

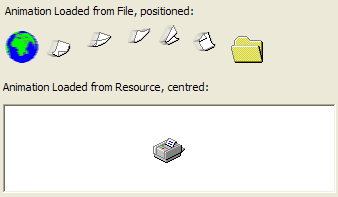

Animate Control Class Sample

This article presents a simple class you can use to load AVIs from files or an application's resource file for display whilst the application is performing a long operation.

The ComCtl32.DLL Animation Control

The animation control provided with ComCtl32.DLL is a simple way of displaying AVI files asynchronously. You can see this control in use whenever you delete or copy large numbers of files from Windows Explorer: a small popup window shows and displays a copy or delete AVI along with a progress bar. The control itself is nice and simple: once created, you tell it to load an AVI and then it can either automatically start playing the AVI or you can start and stop the AVI manually and control exactly which frames are displayed. The AVI is played from a separate thread which means it continues to update even if your application is busy (note that this is only true when VB is running outside the IDE).

The control itself isn't actually much of a control: it's transparent to the mouse and only has two events, which you very rarely ever want to use: notification of the animation starting and stopping. So the approach taken here is to implement it as a class instead, and allow you to specify which object (form or control) you'd like the animation to be drawn on.

The cAnimControl Class

The class itself turns out to be 12k in size, which is rather smaller than using the MS controls for the same purpose (the VB5 one is 161k, with VB6 coming in at a fairly hefty 633k...). The class is a little tricker than a control because you can't set any properties outside code, but not very much as it only has a handful of properties and methods:

  • Owner
    Gets/sets the object the animation control will be drawn onto. As soon as this is specified the control will be created, and any animations specified will be loaded.
  • Transparent
    Gets/sets whether the AVI will be displayed transparently. Transparent in terms of the Animation Control means setting the background of the AVI to the background colour of the object it is placed on. When the AVI is loaded for the first time, the control evaluates the top-left pixel of the first frame of the AVI. This colour is then replaced with the background colour of the background whether an AVI frame is drawn.
  • AutoPlay
    Gets/sets whether the AVI will start continuously playing as soon as it has been loaded.
  • Centre
    Gets/sets whether the AVI is centred to the Owner control when it is loaded. Otherwise, the AVI is shown at the top left point in the control, and you can determine the Width and Height of the AVI (in pixels) using the Width and Height properties.
  • FileName
    Specifies the name of an AVI file to load. Specifying this unloads any AVI currently open. If the filename is blank, then the control is hidden.
  • ResourceId, ResourceFileName
    See the next section for details on loading AVIs from resources.

Loading Animations from Resource Files

Animations can be loaded from any EXE or DLL provided that they are created with the resource type "AVI". Here is a sample Resource File script (.rc file) for creating a compiled resource file containing an AVI at resource id 101:

// AVI
101 	AVI 	"printing.avi"

To open the animation from the resource, you first specify the ResourceFileName if the resource is not in the current application's executable and then specify the animation resource id to load using the ResourceId. The class will attempt to load the resource as soon as ResourceId has been set. Note that if you're loading the resource from the local application (i.e. ResourceFileName is blank) then loading will only succeed when the application is compiled.

If You Really Do Want To Respond to Start, Stop Notifications

Although the class doesn't support Start and Stop notifications, its easy to add code to your project for them if you need to. Just reference the Subclassing and Timer Assistant and then add code like this:

Option Explicit

Private Const WM_COMMAND = &H111&
Private Const ACN_START = 1
Private Const ACN_STOP = 2

Private m_cAnim As cAnimControl

Implements ISubClass

Private Sub Form_Load()

   ' Attach to the window handle of the Owner
   ' of the cAnimControl class:
   AttachMessage Me, picAnim.hWnd, WM_COMMAND
   ' Create the animation control, and play once:
   Set m_cAnim = New cAnimControl
   m_cAnim.Filename = App.Path & "\download.avi"
   m_cAnim.Owner = picAnim
   m_cAnim.StartPlay , , 1

End Sub

Private Property Let ISubClass_MsgResponse(ByVal RHS As EMsgResponse)
End Property

Private Property Get ISubClass_MsgResponse() As EMsgResponse
   ISubClass_MsgResponse = emrPostProcess
End Property

Private Function ISubClass_WindowProc( _
       ByVal hWnd As Long, _
       ByVal iMsg As Long, _
       ByVal wParam As Long, _
       ByVal lParam As Long) As Long

   If (iMsg = WM_COMMAND) Then
      If (lParam = m_cAnim.hWnd) Then
         Dim iCode As Long
         iCode = (wParam And &H7FFF0000) \ &H10000
         Select Case iCode
         Case ACN_START
            Debug.Print "Started..."
         Case ACN_STOP
            Debug.Print "Stopped."
         End Select
      End If
   End If

End Function
